Welcome to Lijing Washing Equipment Co.,Ltd.!
HOT SEARCH:

Need Help?Please call:

020-84885347/13928870739

 wechat/whatsapp :+853 6891 1861

PRODUCTS

NEWS & NOTE

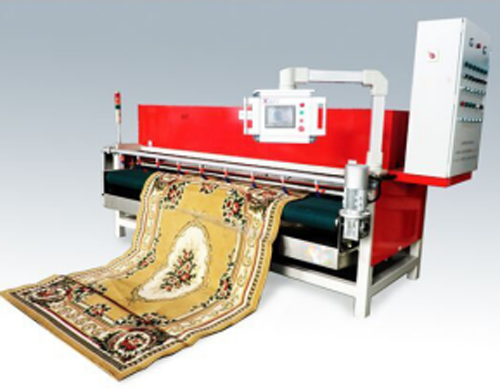

XDT series Carpet washing machine

XDT series Carpet washing machine
Model: XDT series Carpet washing machine
View: 5693
Have requirements or questions? Please contact us:
+8613928870739
Washing equipment experts unriddling for you!

Feature

1 PLC controlled system, touch screen operation, at the same time you can operate with manual operation button.

2.Easy to operate, require1-2 individual workers operating.

3. Grip conveyor band system durable to all kinds of chemical and detergent.

4.Main parts manufactured with 304 stainless steel.

5 .save the energy, water and labor cost .

6. Waste water disposal pool collects waste water.

7.washing width can be adjustable,


8.low cost .

型號

Model

XDT-1600

XDT-2000

XDT-2500

XDT-3200

XDT-4200

刷子數量

Brush quantity

5

5

6

6

10

最大洗滌寬度(m)

Max.wash width(m)

1.6

2

2.5

3.2

4.2

工作效率(m2/h)

washing speed
(m2/h)

40

50

55

90

120

平均洗滌時間(min)

average washing time (min)

5

5

5

5

5

耗水量(L/m3)

washer consumption (L/m3)

30

30

30

30

30

耗電量(kw/m2)

electric consumption (kw/m2)

0.075

0.075

0.075

0.075

0.075

額定功率(kw)

rated power(kw)

3

3.5

3.5

3.5

7.5

刷子速度(r/min)

brush speed (r/min)

0-500

0-500

0-500

0-500

0-500

蠕動泵數量

peristaltic pump Qty

1

1

1

1

1

水泵數

water pump Qty

1

1

1

1

1

儲水盒

Water storage box Qty

1

1

1

1

1

觸摸面板

touch panel

1

1

1

1

1

進水管(inch)

water inlet (inch)

1/2

1/2

1/2

1/2

1/2

自動卷

automatic roll

1

1

1

1

1

速度m/min

speed  (m/min)

0.6

0.6

0.6

0.6

0.6

電壓(v)

voltage(V)

380

380

380

380

380

尺寸(mm)

dimension (mm)

2.2*2*1.8

3*2*1.8

3.5*2*1.8

4.6*2*1.8

5.4*2*1.8

重量(kg)

weight(kg)

520

620

720

1000

1200
